Eye Anatomy

Key Structures and Pathologically Relevant Principles

Basic Eye Anatomy

A review of basic eye structures, with focus on physiologic and pathologic correlates.

The Retina

A review of the retinal layers, vessels, optic nerve and basic optical coherence tomography

Gonioscopic Anatomy

For advanced students. Review of gonioscopy and the various grading systems used to describe the angle

Basic Eye Anatomy

Click above to see a video that uses diagrams and a cadaveric dissection of the eye to explore basic eye anatomy

Structures of the Eye

The eye consists of the following structures, as detailed in the video:

  • External eye and adnexa

    • Eyelids and lashes

    • Lacrimal (tear) apparatus

  • Conjunctiva

  • Sclera

  • Cornea

  • Anterior chamber

  • Ciliary body and aqueous drainage system

  • Iris

  • Lens

  • Vitreous

  • Retina and Optic Nerve

Below, find an explanation of each anatomical part from the above video with physiologic and pathologic correlates. Only the most important anatomical details are listed, alongside web links to videos and diagrams (each underlined text is a link)

External eye and adnexa

  • The eye is attached to six muscles that provide movement

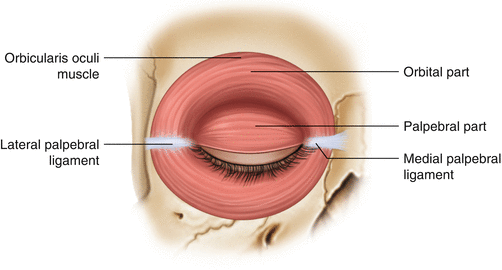

  • The eyelid is opened by Superior Tarsal (Muller’s) muscle and the levator palpebrae. It is closed by the orbicularis oculi muscle

  • The tarsal plate is a fibrous layer in the eyelid that provides lid support. They contain Meibomian glands that provide oily secretions for tear film

Resources:

Sclera

  • Dense fibrous, collagenous structure which gives rigidity to the eye

  • Its outermost layer is called episclera, which is a vascularized connective tissue

Anterior Chamber

  • Empty space between cornea and iris filled with aqueous humor

  • Decreased deepness of the anterior chamber increases a patient’s risk of angle closure glaucoma

  • Can be examined in detail through gonioscopy (see below)

Iris, Ciliary Body and Choroid (Collectively Known as Uvea)

  • The uvea is a pigmented and highly vascular layer that can become inflammed (uveitis)

  • The choroid supplies nutrition to the outer layers of the retina (up to the outer plexiform layer - see retina anatomy)

  • The ciliary body is the anterior continuation of the choroid. It produces aqueous humor and helps with accommodating the lens via the ciliary muscle

  • The iris a circular diaphragm that constricts (parasympathetic) and dilates (sympathetic) to control the amount of light through the pupil

  • The iris can bow forward, causing angle closure glaucoma or press against the lens, causing pupillary block glaucoma

Conjunctiva

  • A thin translucent mucous membrane that consists of two parts:

    • Palpebral (on the eyelid)

    • Bulbar (covering the eyeball)

Cornea

  • Is the most densely innervated tissue in the body (hence injury is extremely painful)

  • Helps in refracting light

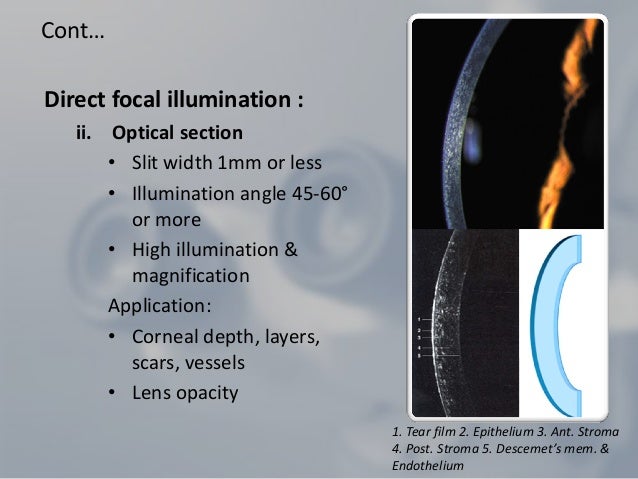

  • Consists of 5 layers, which can be visualized in a slit lamp exam, from outermost to innermost:

    • Epithelium: contains stem cells at the limbus and can regenerate

    • Bowman’s membrane: acellular layer that cannot regenerate following trauma

    • Stroma: Comprises 90% of corneal thickness

    • Descemet’s Membrane: Is the basement membrane of the endothelium

    • Endothelium: Single hexagonal layer of cells (density: 5000 cells/sq mm at birth; declines with age) that dehydrate the cornea. This layer cannot regenerate and damage causes corneal edema once cell counts are below 500 cells/sq mm

Lens

  • Is a transparent biconvex structure that refracts light onto the retina. It consists of three parts:

    • Capsule: is an envelope that holds the lens cortex and nucleus in place, like a plastic bag. It is attached to zonules of the ciliary body to allow for lens contraction and relaxation

    • Cortex: is the outer portion of the lens. It becomes opacified in spoke fashion in cortical cataracts

    • Nucleus: the central portion of a lens. In a nuclear cataract, the lens becomes hazy and opaque centrally

Vitreous

  • Inert, transparent, jelly like structure that fills the eyeball behind the lens

  • Supplies nutrients to the lens and retina

  • Liquefies with age, causing floaters

Retina Anatomy and Images

Histological cross section of the retina

Histological cross section of the retina

Layers of the Retina: An Overview from Inner to Outer Retina (Anterior to Posterior):

  1. Inner limiting membrane: Is the structural interface between the vitreous and retina

  2. Retinal Nerve Fiber Layer: Consists of axons of the optic nerve as they course across the retina

  3. Ganglion Cell Layer: Contain cells that integrate information from intermediate cells in the retina that receive information from the photoreceptors and create action potentials to be propagated along the nerve fiber axons

  4. Inner Plexiform Layer: Layer consisting of the dendrites of retinal ganglion cells and cells of the inner nuclear layer

  5. Inner Nuclear Layer: Contains 3 types of cells (bipolar, amacrine, horizonal cells) that compute and integrate signals from photoreceptors

  6. Outer Plexiform Layer: Consists of dendrites connecting photoreceptors and inner nuclear layer cells

  7. Outer Nuclear Layer: Contain portions of the photoreceptors

  8. External Limiting Membrane: Landmark separating the photoreceptor nucleus from the metabolic (inner) segment and light sensing (outer) segment of the cell (see here for diagram)

  9. Photoreceptor layer: Contains the inner and outer segments of the photoreceptor

  10. Retinal Pigment Epithelium: Layer responsible for nourishing the retina, prevent reflection on the retina, and acts as a blood-eye barrier

See this excellent video if further interested in the electrical circuitry of retinal signal processing



Optical Coherence Tomography Imaging of the Retina (for advanced students)

Optical Coherence Tomography (OCT) is an imaging test that ophthalmologists use in clinic to visualize the histology of the retinal cell layers discussed above. It can be used to detect:

  • Thinning of certain retinal layers

  • Fluid/bleeding in various regions of the retina

  • Accumulation of drusen in the retina (see section on age related macular degeneration)

  • Extra membranes forming on the retina

  • Retinal vasculature (in the form of performing non invasive angiography of retinal vessels, known as OCT angiography)

On an OCT scan of the retina, the histologic layers are clearly delineated, as seen in this scan of the central retina, known as the macula:


Interpreting OCT scans is an integral part of ophthalmology. If interested in exploring the basics of OCT scans further, see the following resources:

Retinal Photography

Understanding how the healthy retina looks on direct visualization is crucial to both the ophthalmologist or the non-ophthalmologist using direct ophthalmoscopy.

Color fundus photo of the right eye centered on the macula. The vessels are flat and normal sized without evidence of AV nicking or micro-aneurysms. The periphery is normal, without exudate or pigmentary changes. The macula is flat. The optic disk i…

Color fundus photo of the right eye centered on the macula. The vessels are flat and normal sized without evidence of AV nicking or micro-aneurysms. The periphery is normal, without exudate or pigmentary changes. The macula is flat. The optic disk is sharp, normally colored and has a cup:disc ratio of 0.3

Descriptive characteristics of the healthy retina:

Type of image:

  • Color fundus photo shows the eye with its normal color. It can be contrasted by other studies such as fundus autofluorescence or fluorescein fundus angiography.

  • Laterality of the eye is determined by looking at the optic nerve, which is always nasal. As a quick rule of thumb, the position of the nerve in the picture (left or right) corresponds to the eye being observed.

  • Centering of the image is also important. Some images can be focused on the optic disc or be wide-field images

Optic Nerve

  • Color: A healthy nerve should be pink. Disc pallor could be a sign of atrophy

  • Sharpness/Border: A sharp border of the disc is normal. Blurred discs (papilledema) could be caused by inflammation or increased intracranial pressure

  • Cup-to-disc ratio: a ratio of above 0.7 or a difference >0.2 between eyes is considered pathologic, usually indicative of glaucoma. See discs with various C/D ratios here

  • Hemorrhage: Bleeding on the disc can also be an indicator of glaucoma

Retinal Vessels:

  • In a healthy eye, the caliber of retinal veins to arteries is 3:2

  • Retinal neovascularization (on the optic disc, elsewhere) can be a sign of various diseases

  • Various features of the vessels, such as aneurysms, AV-nicking, and arteriolar narrowing can be suggestive of systemic disease such as hypertension

Retinal Hemorrhage:

Other Common “Yellow-white appearing“ Findings:

  • Cotton wool spots: Soft yellow spots corresponding to various diseases such as diabetes

  • Hard Exudates: More defined patches of lipoprotein filled macrophages that have extravasated. Also associated with diabetes

  • Drusen: Yellow flecks representing dead retinal pigment epithelial cells



Gonioscopy
